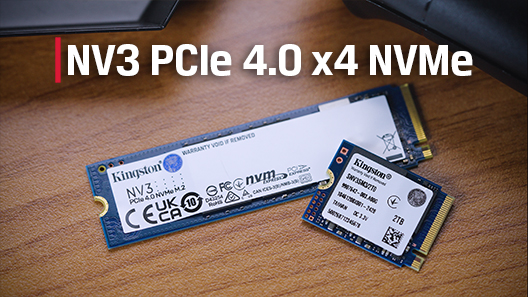

NV3 PCIe 4.0 NVMe SSD - Support
Resources
Frequently Asked Questions
1. Download Kingston SSD Manager from https://www.kingston.com/support/technical/ssdmanager to confirm if there is a firmware update available for your drive, and if so, apply the update (if recommended).
2. Consult your system manufacturer’s support page to confirm if there is a BIOS update available for your system.
3. Confirm you’re running the latest version of your operating system and ensure that you don’t have any pending updates.
4. Confirm you are running the latest drivers for your system. You can do this by visiting your system manufacturer’s support page and looking for the latest driver updates.
If you’re still encountering issues with your system after these steps, please contact Kingston Technical Support.
2. Consult your system manufacturer’s support page to confirm if there is a BIOS update available for your system.
3. Confirm you’re running the latest version of your operating system and ensure that you don’t have any pending updates.
4. Confirm you are running the latest drivers for your system. You can do this by visiting your system manufacturer’s support page and looking for the latest driver updates.
If you’re still encountering issues with your system after these steps, please contact Kingston Technical Support.
FAQ: KSD-012010-001-21
Was this helpful?
Select the following link to learn how to install your M.2 SSD: https://www.kingston.com/blog/personal-storage/install-m2-ssd
FAQ: KSD-012010-001-00
Was this helpful?
The easiest way to ensure that your new SSD appears as your boot drive is to ensure that it is the only storage device connected during installation.
If this is not possible, or if you previously cloned your old data to your new drive, confirm that the new drive appears as a boot device in the system BIOS, then select it for booting.
If this is not possible, or if you previously cloned your old data to your new drive, confirm that the new drive appears as a boot device in the system BIOS, then select it for booting.
FAQ: KSD-012010-001-03
Was this helpful?
There are various reasons a new drive might not accept an OS installation. Use these steps to help troubleshoot your install:
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
FAQ: KSD-012010-001-05
Was this helpful?
Windows 7 doesn’t natively support NVMe SSDs. If you wish to install Windows 7 on your NVMe SSD, please refer to this Microsoft hotfix explanation:
https://support.microsoft.com/en-us/topic/update-to-add-native-driver-support-in-nvm-express-in-windows-7-and-windows-server-2008-r2-03cd423b-d42e-66c2-722b-019d16455a6b
https://support.microsoft.com/en-us/topic/update-to-add-native-driver-support-in-nvm-express-in-windows-7-and-windows-server-2008-r2-03cd423b-d42e-66c2-722b-019d16455a6b
FAQ: KSD-012010-001-06
Was this helpful?
No, Kingston NVMe SSDs do not require a special NVMe driver. The inbox drivers present in Windows 8 and later are sufficient.
FAQ: KSD-012010-001-07
Was this helpful?
First, you should confirm that the SSD is seen within the system BIOS. Enter your BIOS (usually, Del, F2, F10, or F12 key) and navigate through your storage configuration menu(s) to see if the drive is correctly identified and present. If the drive isn’t present, power off the system, check the installation and connections to confirm the drive is seated and/or connected properly.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
FAQ: KSD-012010-001-15
Was this helpful?
Please refer to this blog post discussing M.2 technology.
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
FAQ: KSD-012010-001-16
Was this helpful?
There are a variety of external enclosures available on the market. While Kingston aims to be compatible with all system types, occasionally, there may be an incompatibility. If you continue to have trouble with your external SSD enclosure, you may want to try a different enclosure.
FAQ: KSD-012010-001-18
Was this helpful?
SSD firmware is the integrated software within an SSD that manages its operations, including communication with the host system, data storage and retrieval, wear levelling and error correction. Kingston recommends that you always maintain the latest firmware.
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
FAQ: KSD-012010-001-11
Was this helpful?
M.2 is the physical form factor. SATA and PCIe refer to the storage interface, the primary difference is performance and the protocol (language) spoken by the M.2 SSD.
The M.2 spec was designed to accommodate both a SATA and PCIe interface for SSDs. M.2 SATA SSDs will use the same controller currently on a typical 2.5” SATA SSDs. M.2 PCIe SSDs will use a controller specifically designed to support the PCIe protocol. An M.2 SSD can only support one protocol, but some systems have M.2 sockets that can support either SATA or PCIe.
FAQ: KSD-004005-001-00
Was this helpful?
Click here to learn more about the differences between these two types of SSDs.
https://www.kingston.com/blog/pc-performance/nvme-vs-sata
https://www.kingston.com/blog/pc-performance/nvme-vs-sata
FAQ: KSD-012010-001-19
Was this helpful?
When cloning to a new drive larger than the source drive, the software may not properly scale partition size. When this occurs, you might end up with unused space. To avoid this, follow our cloning instructions located here: www.kingston.com/cloning
FAQ: KSD-012010-001-04
Was this helpful?
SSD firmware is the integrated software within an SSD that manages its operations, including communication with the host system, data storage and retrieval, wear levelling and error correction. Kingston recommends that you always maintain the latest firmware.
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
FAQ: KSD-012010-001-11
Was this helpful?
Kingston does not offer DOS-based firmware updates at this time.
FAQ: KSD-012010-001-12
Was this helpful?
Unless explicitly indicated, no, an SSD update will not erase data from the drive. However, before performing any SSD firmware updates, Kingston recommends all data on the target drive be backed up before proceeding with the firmware update.
FAQ: KSD-012010-001-13
Was this helpful?
While it may be possible to update your target drive’s firmware via USB storage enclosure, Kingston does not recommend it. Proper update procedure involves having your target SSD connected directly to the system ports (e.g., SATA or NVMe).
FAQ: KSD-012010-001-14
Was this helpful?
When cloning to a new drive larger than the source drive, the software may not properly scale partition size. When this occurs, you might end up with unused space. To avoid this, follow our cloning instructions located here: www.kingston.com/cloning
FAQ: KSD-012010-001-04
Was this helpful?
There are various reasons a new drive might not accept an OS installation. Use these steps to help troubleshoot your install:
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
FAQ: KSD-012010-001-05
Was this helpful?
Please refer to this blog post discussing M.2 technology.
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
FAQ: KSD-012010-001-16
Was this helpful?
First, you should confirm that the SSD is seen within the system BIOS. Enter your BIOS (usually, Del, F2, F10, or F12 key) and navigate through your storage configuration menu(s) to see if the drive is correctly identified and present. If the drive isn’t present, power off the system, check the installation and connections to confirm the drive is seated and/or connected properly.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
FAQ: KSD-012010-001-15
Was this helpful?
There are a variety of external enclosures available on the market. While Kingston aims to be compatible with all system types, occasionally, there may be an incompatibility. If you continue to have trouble with your external SSD enclosure, you may want to try a different enclosure.
FAQ: KSD-012010-001-18
Was this helpful?
There are various reasons a new drive might not accept an OS installation. Use these steps to help troubleshoot your install:
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
-Confirm that the system BIOS recognises your new SSD and if not, visit the motherboard / system manufacturer’s website to see if there is a new BIOS available.
-Verify your BIOS settings are configured to accept a new NVMe SSD.
-Confirm that your target operating system supports NVMe SSDs (e.g., Windows 8 or later)
Note: Kingston SSDs do not require additional drivers to operate.
FAQ: KSD-012010-001-05
Was this helpful?
When cloning to a new drive larger than the source drive, the software may not properly scale partition size. When this occurs, you might end up with unused space. To avoid this, follow our cloning instructions located here: www.kingston.com/cloning
FAQ: KSD-012010-001-04
Was this helpful?
The easiest way to ensure that your new SSD appears as your boot drive is to ensure that it is the only storage device connected during installation.
If this is not possible, or if you previously cloned your old data to your new drive, confirm that the new drive appears as a boot device in the system BIOS, then select it for booting.
If this is not possible, or if you previously cloned your old data to your new drive, confirm that the new drive appears as a boot device in the system BIOS, then select it for booting.
FAQ: KSD-012010-001-03
Was this helpful?
Select the following link to learn how to install your M.2 SSD: https://www.kingston.com/blog/personal-storage/install-m2-ssd
FAQ: KSD-012010-001-00
Was this helpful?
Kingston does not offer DOS-based firmware updates at this time.
FAQ: KSD-012010-001-12
Was this helpful?
SSD firmware is the integrated software within an SSD that manages its operations, including communication with the host system, data storage and retrieval, wear levelling and error correction. Kingston recommends that you always maintain the latest firmware.
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
If your SSD requires new firmware, you will receive a notification when running Kingston’s SSD Manager software, located here: www.kingston.com/ssdmanager
FAQ: KSD-012010-001-11
Was this helpful?
No, Kingston NVMe SSDs do not require a special NVMe driver. The inbox drivers present in Windows 8 and later are sufficient.
FAQ: KSD-012010-001-07
Was this helpful?
Windows 7 doesn’t natively support NVMe SSDs. If you wish to install Windows 7 on your NVMe SSD, please refer to this Microsoft hotfix explanation:
https://support.microsoft.com/en-us/topic/update-to-add-native-driver-support-in-nvm-express-in-windows-7-and-windows-server-2008-r2-03cd423b-d42e-66c2-722b-019d16455a6b
https://support.microsoft.com/en-us/topic/update-to-add-native-driver-support-in-nvm-express-in-windows-7-and-windows-server-2008-r2-03cd423b-d42e-66c2-722b-019d16455a6b
FAQ: KSD-012010-001-06
Was this helpful?
There are a variety of external enclosures available on the market. While Kingston aims to be compatible with all system types, occasionally, there may be an incompatibility. If you continue to have trouble with your external SSD enclosure, you may want to try a different enclosure.
FAQ: KSD-012010-001-18
Was this helpful?
First, you should confirm that the SSD is seen within the system BIOS. Enter your BIOS (usually, Del, F2, F10, or F12 key) and navigate through your storage configuration menu(s) to see if the drive is correctly identified and present. If the drive isn’t present, power off the system, check the installation and connections to confirm the drive is seated and/or connected properly.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
If the drive is present in the BIOS, you may need to initialise the disk within the operating system.
For Windows:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Windows OS.
Step 2: Press Windows + X and choose Disk Management.
Step 3: If the SSD is new and not initialised, a popup will appear saying "Initialize Disk".
Step 4: Choose between: MBR (Master Boot Record): Suitable for drives under 2TB and older systems. GPT (GUID Partition Table): Recommended for modern systems and drives larger than 2TB.
Step 5: Click OK to initialize the disk.
Step 6: Once initialised, you'll see the SSD as "Unallocated". Right-click on it and select New Simple Volume.
Step 7: Follow the on-screen prompts (keeping all defaults is Okay) to format and assign a drive letter to the SSD.
For macOS:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Mac OS.
Step 2: Open Disk Utility (you can find it using Spotlight with Cmd + Space and then typing "Disk Utility").
Step 3: In the left pane, select your SSD.
Step 4: Click on Erase.
Step 5: Provide a name for the drive, and under Format, choose: APFS for newer Macs and SSDs. Mac OS Extended (Journaled) for older systems or HDDs.
Step 6: Click Erase. Once the process completes, the SSD will be ready for use.
For Linux:
Step 1: Confirm the drive is properly attached, and power on the system, then boot into Linux OS.
Step 2: Open a terminal.
Step 3: Enter sudo fdisk -l to list all connected drives. Identify your SSD by its size and note the device name, e.g., /dev/sdb.
Step 4: Initialize the SSD using fdisk or parted. Here's a basic guide using fdisk: Enter sudo fdisk /dev/sdb (replace /dev/sdb with your SSD's device name). Press g to create a new GPT partition table. Press n to create a new partition. Follow the prompts to specify the size and type. Press w to write the changes.
Step 5: Format the new partition on the SSD (e.g., /dev/sdb1). You can format it with the filesystem of your choice: For ext4: sudo mkfs.ext4, For ext3: sudo mkfs.ext3 /dev/sdb1 /dev/sdb1, For FAT32: sudo mkfs.vfat /dev/sdb1
Step 6: Mount the SSD: Create a mount point: sudo mkdir /mnt/myssd, Mount the SSD: sudo mount /dev/sdb1 /mnt/myssd, Remember to replace /dev/sdb1 with your SSD's partition name.
FAQ: KSD-012010-001-15
Was this helpful?
Please refer to this blog post discussing M.2 technology.
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
https://www.kingston.com/blog/pc-performance/two-types-m2-vs-ssd
FAQ: KSD-012010-001-16
Was this helpful?
While it may be possible to update your target drive’s firmware via USB storage enclosure, Kingston does not recommend it. Proper update procedure involves having your target SSD connected directly to the system ports (e.g., SATA or NVMe).
FAQ: KSD-012010-001-14
Was this helpful?
Unless explicitly indicated, no, an SSD update will not erase data from the drive. However, before performing any SSD firmware updates, Kingston recommends all data on the target drive be backed up before proceeding with the firmware update.
FAQ: KSD-012010-001-13
Was this helpful?
